Target™ Torch Turbine Flame kits and tips
Kits feature the adjustable Target Tips for professional soldering and brazing applications. These tips are very hot and have a compact flame. Kits also include a quick disconnect handle, 12 ft. hose and UL listed regulator. Choose from a wide selection of kits below.
- Turbine Flame
- Adjustable flame feature
- Unique mixer design reduces brazing time over conventional tips
- Tips have a filter and removable orifice
- Interchangeable with other snap-in style tips and equipment
- Made of heavy gauge stainless steel and brass
|
Kit No.
|
Tip No.
|
Reg. fitting
|

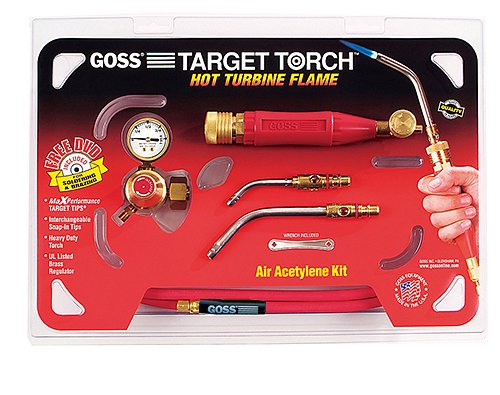

| KX-3B (shown) |
GA-3, GA-11 |
"B" Cylinder |
| KX-4B |
GA-5, GA-14 |
"B" Cylinder |
| KX-5B |
GA-5 |
"B" Cylinder |
| KX-5MC |
GA-5 |
"MC" Cylinder |
| KX-6B |
GA-3, GA-8 |
"B" Cylinder |
| KX-6MC |
GA-3, GA-8 |
"MC" Cylinder |
| KX-7B |
GA-8 |
"B" Cylinder |
Contents: HA3-12 hose, GG-4 handle, tip(s), MA-2 wrench and regulator.
|
Tip No.
|
Tip Size
|
Soft Solder
|
Silver Braze
|
| GA-2 |
1/4" |
1/8"-1/2" |
1/8"-1/4" |
| GA-3 |
5/16" |
1/4"-1" |
1/8"-1/2" |
| GA-5 |
3/8" |
3/4"-1½" |
1/4"-3/4" |
| GA-8 |
3/8" |
1"-2" |
1/2"-1" |
| GA-11 |
7/16" |
1½"-3" |
7/8"-1-5/8" |
| GA-14 |
1/2" |
2"-4" |
1"-2" |
| GA-32 |
3/4" |
4"-6" |
1½"-4" |
